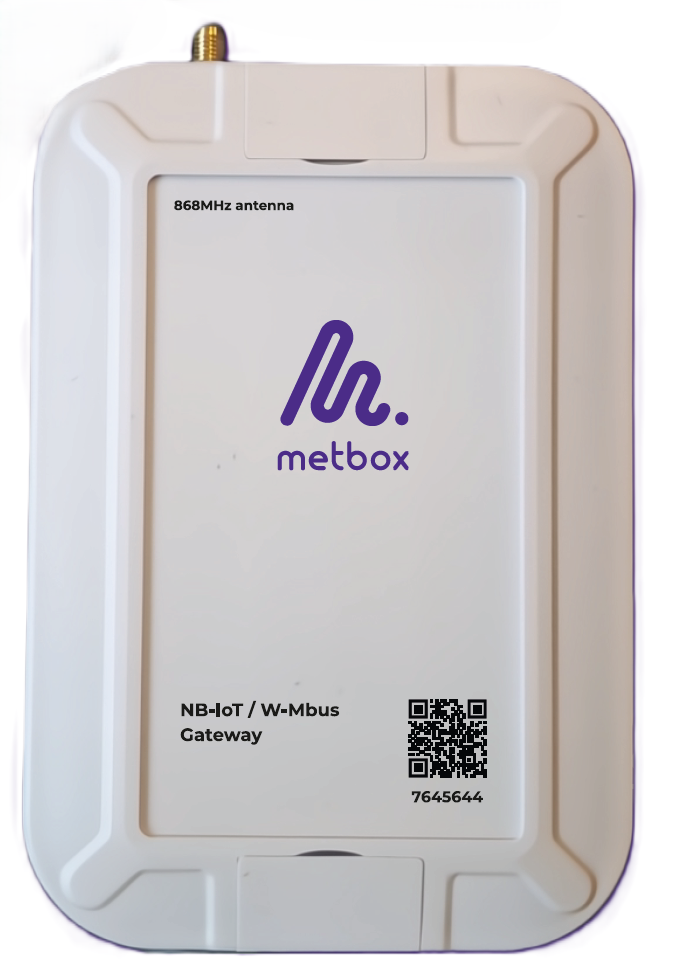

Metbox wM-Bus Gateway Battery · angled view
Metbox wM-Bus Gateway Battery · front view, label and QR
Gateway · Wireless · Battery

Metbox wM-Bus Battery

€95.00excl. VAT
Datasheet
Wireless M-BusOMSBatteryNB-IoT

A wireless gateway for sites without a mains connection. Equipped with a replaceable two-battery system, easy to install and requiring no regular maintenance. Suited to basements, shafts and distributed meter networks.

Wireless M-Bus / OMS
868 MHz · OMS 3.x & 4.x
Battery powered
Replaceable two-battery system
NB-IoT uplink
UDP · LwM2M
80+ meter models
Technology-neutral collection
Connectivity

Supported protocols & networks

Wireless M-Bus
868 MHz (±5 MHz) · uni-directional
OMS
Open Metering System · 3.x & 4.x
NB-IoT
Cellular uplink · UDP, LwM2M
Specifications

Full technical specification

Wireless radio
Wireless standard
Wireless M-Bus · 868 MHz (±5 MHz)
OMS compliance
OMS 3.x & 4.x · uni-directional
Antenna
Internal · SMA for external (optional)
Mobile connectivity
Cellular uplink
NB-IoT
Transmission
UDP · LwM2M
SIM card
Nano SIM
Configuration & management
Configuration
Bluetooth interface
Local access
Bluetooth 5.2
Setup time
~1 minute
Battery
Battery type
2× D-size 3.6 V
Capacity
38 000 mAh
Replaceable
Yes
Enclosure & environment
Enclosure material
ABS plastic
Protection class
IP67 · dust-tight, water immersion
Mounting
Wall mount · DIN rail mount
Dimensions
135 × 90 × 40 mm
Operating environment
Outdoor & industrial
Compliance
Certification
CE
Compatibility

Reads 80+ meter models

Landis+Gyr E220Kamstrup flowIQ 2200Diehl HYDRUS 2.0Sensus PolluTherm FB METERS HYDROSONICLandis+Gyr W270G2 G2-RF-S868WMBItron CybleView all 80+
Downloads

Datasheets & documents

Datasheet (PDF)Full technical specification · 2 pagesPDF · 0.8 MB
