Gateway · Wireless · Mains

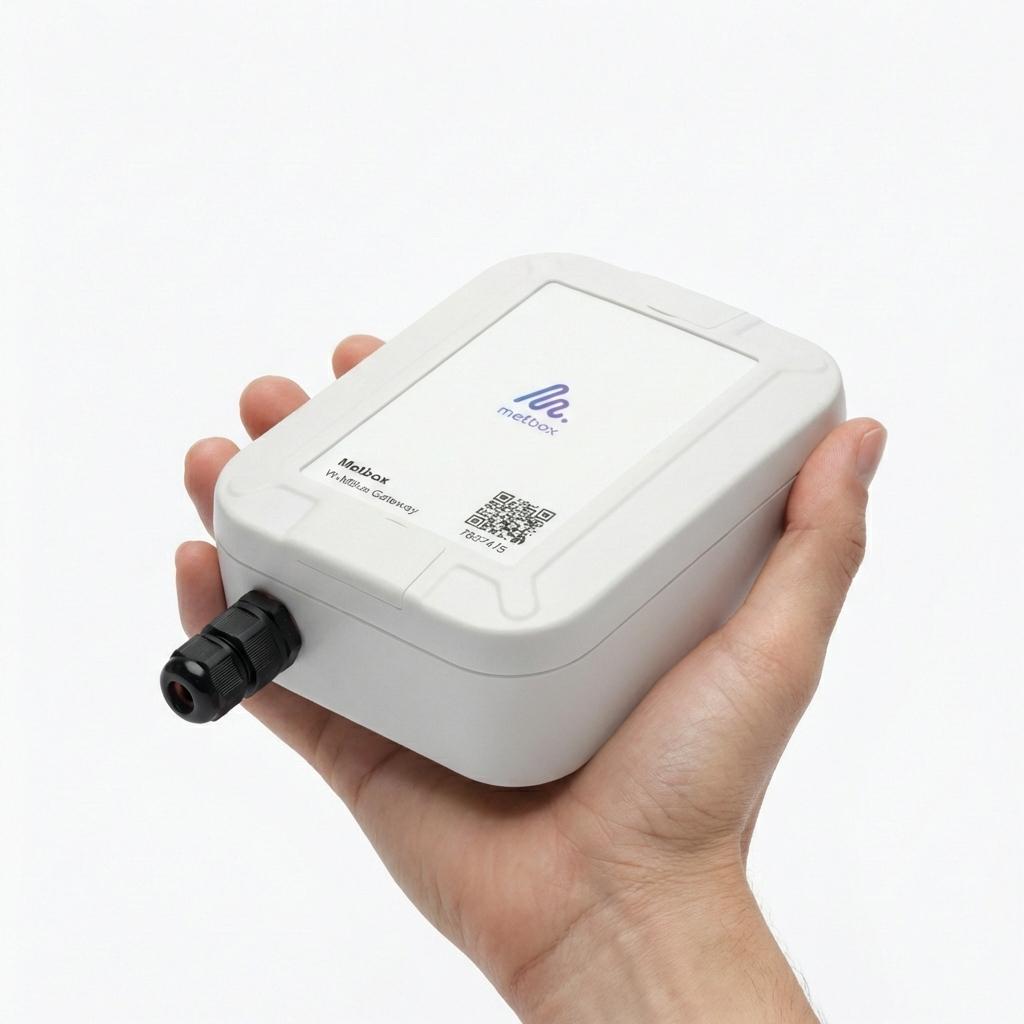

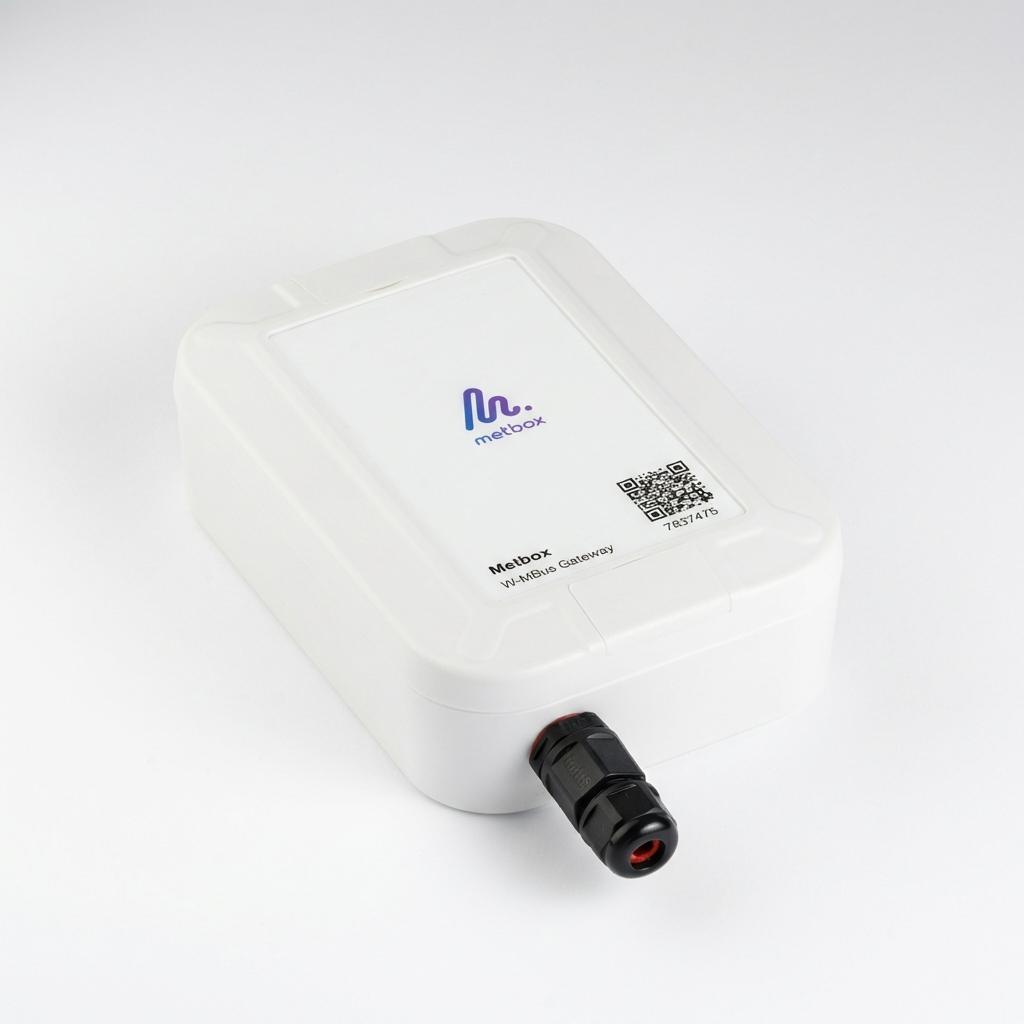

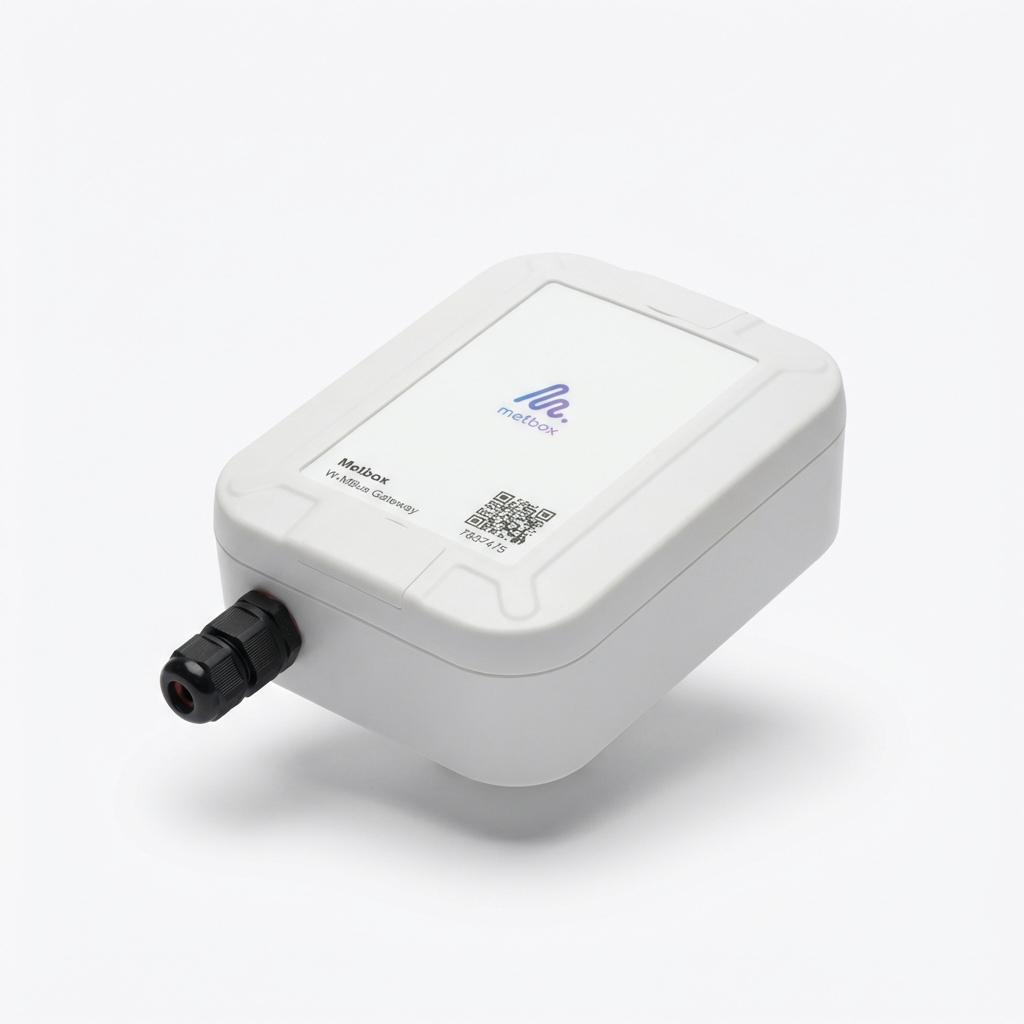

Metbox wM-Bus 230V

95.00excl. VAT
Datasheet
Wireless M-BusOMS230 V mainsLTE Cat-1

A mains-powered Wireless M-Bus / OMS gateway for continuous, frequent data reading in buildings and utility sites. Collects readings from many meter brands and securely sends the data to a remote data collection system over the 4G/LTE network.

Wireless M-Bus / OMS
868 MHz · OMS 3.x & 4.x
230 V mains powered
Continuous operation · 5 W
LTE Cat-1 uplink
TCP/IP · HTTP · HTTPS · MQTT
80+ meter models
Technology-neutral collection
Connectivity

Supported protocols & networks

Wireless M-Bus
868 MHz (±5 MHz) · uni-directional
OMS
Open Metering System · 3.x & 4.x
LTE Cat-1
Secure cellular uplink · TCP/IP, HTTPS, MQTT
Specifications

Full technical specification

Wireless radio
Wireless standard
Wireless M-Bus · 868 MHz (±5 MHz)
OMS compliance
OMS 3.x & 4.x · uni-directional
Antenna
Internal · SMA for external (optional)
Mobile connectivity
Cellular uplink
LTE Cat-1
Transmission
TCP/IP · HTTP · HTTPS · MQTT
SIM card
Nano SIM
Configuration & management
Configuration
Web-based interface
Local access
Wi-Fi 2.4 GHz hotspot
Setup time
~1 minute
Power
Input voltage
230 VAC
Power consumption
5 W
Surge protection
6 kV
Enclosure & environment
Enclosure material
ABS plastic
Protection class
IP67 · dust-tight, water immersion
Mounting
Wall mount · DIN rail mount
Dimensions
170 × 90 × 40 mm
Operating environment
Outdoor & industrial
Compliance
Certification
CE
Secure transmission
HTTPS / TLS
Compatibility

Reads 80+ meter models

Landis+Gyr E220Kamstrup flowIQ 2200Diehl HYDRUS 2.0Sensus PolluTherm FB METERS HYDROSONICLandis+Gyr W270G2 G2-RF-S868WMBItron CybleView all 80+
